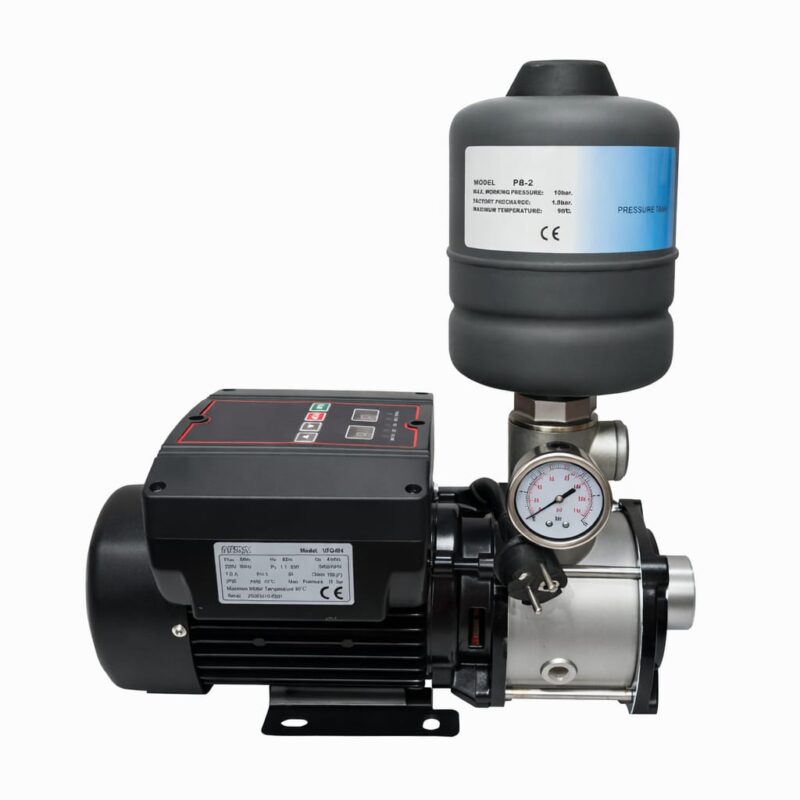

Constant Pressure Water Booster Pump
November 14, 2019
ESPA Pressdrive Pump Controller Switch PCB Kit Card

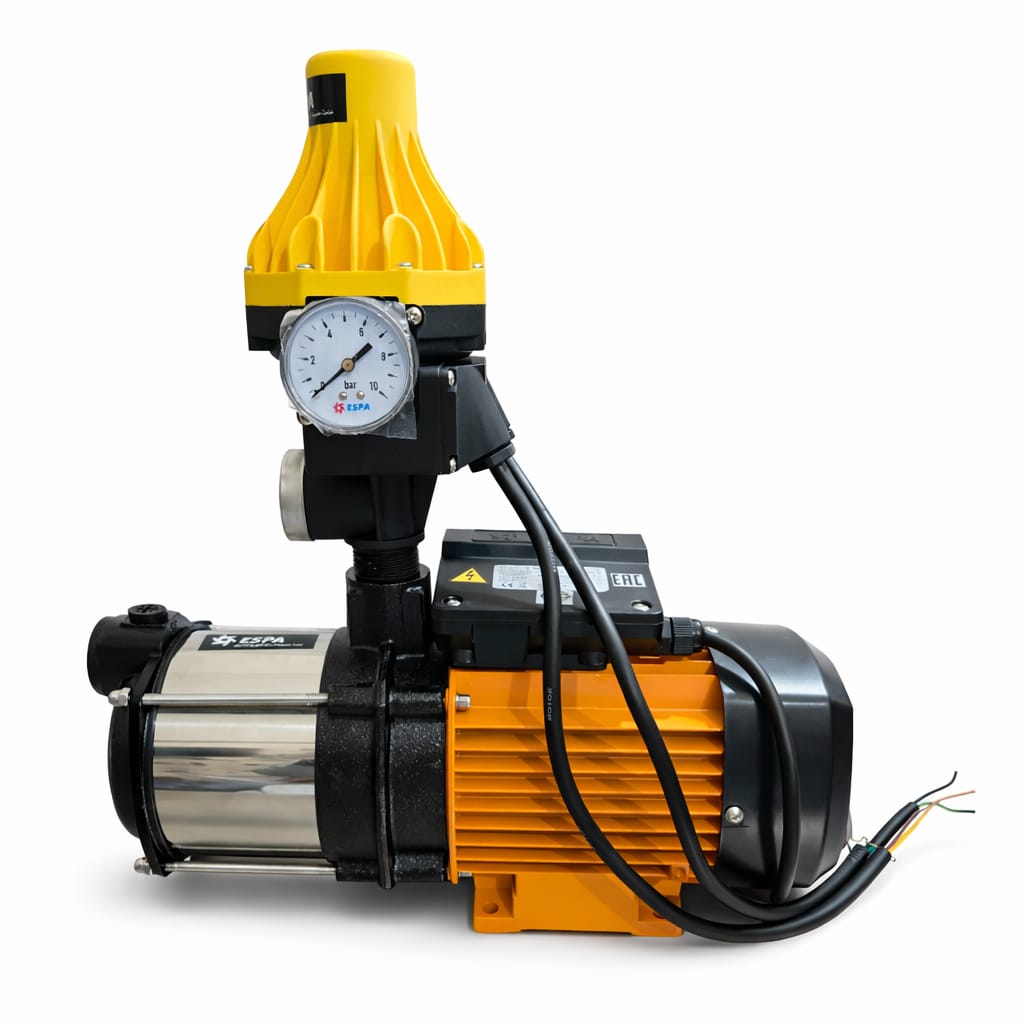

November 15, 2019ESPA PRISMA 15 2M Automatic Water Pressure Booster Pump with Controller (0.75 HP)
₨29,500.00
Brand: ESPA
Model: PRISMA 15 2M
Pump Type: Automatic Water Booster Pump
Input Power: 0.75 HP
Power Consumption (P1): 0.55 kW
Voltage: 230V
Phase: Single Phase
Frequency: 50 Hz
Current: 2.8 A
Speed: 2800 rpm
Flow Rate (Q): 20 – 66 L/min
Head Range (H): 30 – 5 meters
Maximum Head (Hmax): 34 meters
Maximum Water Temperature: 40°C
Capacitor: 12 µF / 450V
Ingress Protection: IPX5
Motor Protection: Thermally Protected
Insulation Class: F
Duty Type: S1 (Continuous Duty)
ESPA PRISMA 15 2M Automatic Water Pressure Booster Pump with Controller (0.75 HP) is a reliable and durable water pump designed to improve water pressure for residential and light commercial applications. It works with an automatic pressure controller that turns the pump ON when a tap is opened and OFF when the tap is closed, ensuring safe and efficient operation.
This model is not an inverter or constant-pressure pump. It is a standard automatic booster system suitable for users who need dependable pressure boosting for daily water usage. The pump features a thermally protected motor and a stainless steel body, providing long service life and stable performance.
Manufactured by ESPA (Spain), the PRISMA 15 2M is ideal for applications such as upper-floor water supply, multiple taps, washing machines, and geysers where automatic operation is required.
Key Features
Automatic ON / OFF operation with pressure controller
Strong and durable ESPA motor
Thermally protected for safe operation
Stainless steel pump body
Single-phase 230V power supply
Low maintenance and long service life
Suitable Applications
Homes and apartments
Upper floor water pressure boosting
Washing machines
Instant or gas geysers
Kitchen and bathroom taps
Small commercial installations
